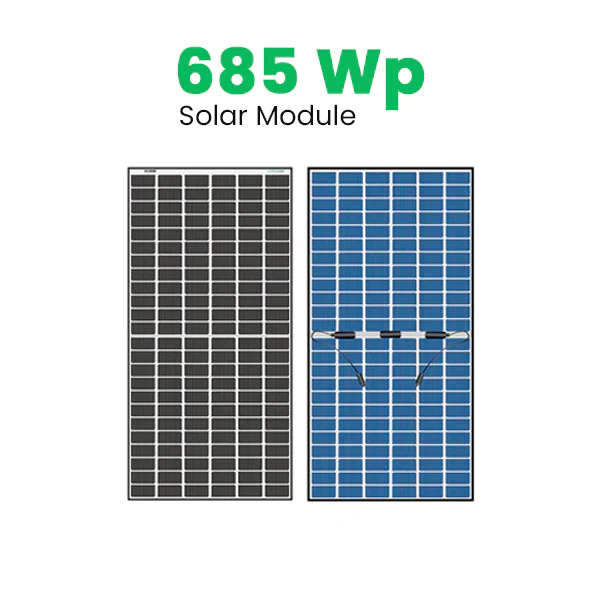

The Loom Solar SHARK 685 Wp N-Type Bifacial Mono PERC solar panel delivers an impressive peak power output of 685 Wp, with a high conversion efficiency of up to 22.0%. Its bi-facial technology allows the rear side to generate additional power, increasing overall efficiency to 25% and boosting total output to 700 Wp. Designed with 132 cells and 12 busbars, this advanced module ensures superior performance and reliability. It consists of a junction box that is IP68-rated and 3 bypasses, ensuring better protection. Additionally, when mounted at a height of 1.5 meters, it enhances power output by 7-20%, making it an ideal choice for maximizing solar energy generation.

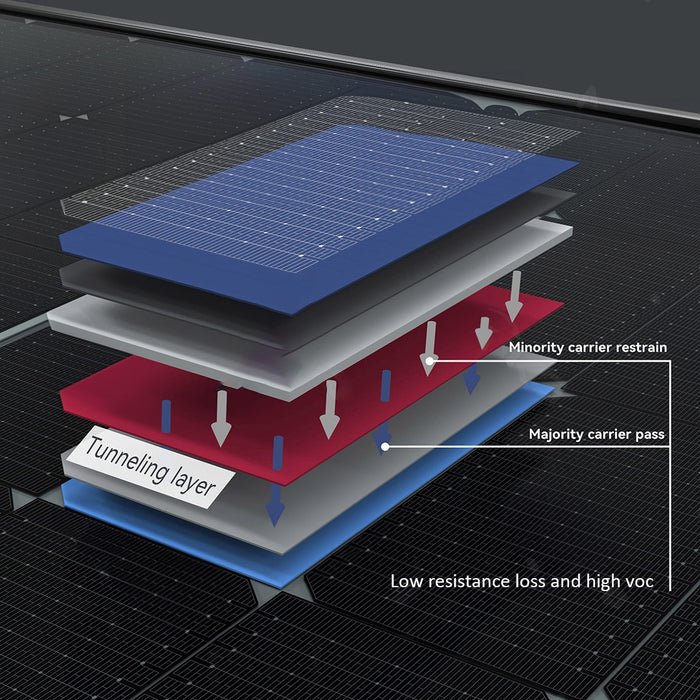

- Technology – Comes with N-Type Bifacial Mono PERC technology that generates power from both sides, enhancing overall efficiency.
- Highest Wattage Capacity – Reduces installation costs, including manpower, stand, wires, and other related expenses, by delivering maximum power output.
- Durable & Weather-Resistant – Built for reliable performance in diverse environmental conditions, ensuring long-lasting durability.
- Long-Lasting Performance – Offers higher lifetime energy output compared to traditional panels, providing a more sustainable and efficient energy solution.
- Premium Warranty – Comes with a 10-year manufacturing warranty and a 30-year performance warranty, ensuring sustained efficiency over time.

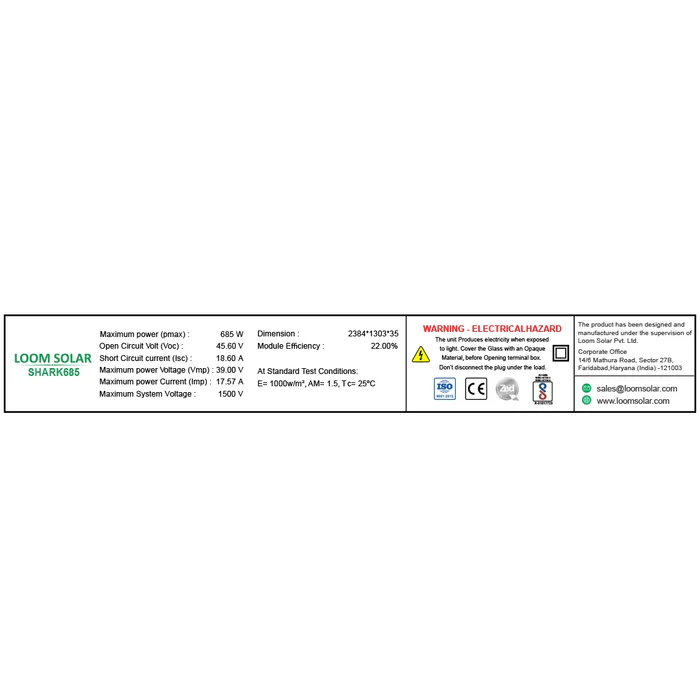

Electrical Specifications
| Module Type |
SHARK 685 Wp| N-Type Bifacial |
| Maximum Power Pmax (W) |
685 Watts |
| Operating voltage |
24 Volt |
| Maximum Power Voltage Vmp (V) |
43.50 |
| Maximum Power Current Imp (A) |
17.57 |
| Open Circuit Voltage Voc (V) |
46.5 |
| Short Circuit Current ISC (A) |
18.60 |
| Module Efficiency (%) |
22.0% |
Mechanical Specifications
| Solar Cell Type |
N-Type |
| Panel Technology |
Mono PERC |
| Space Required |
7.47 x 3.72 =27 sq. feet |
| Number of cells |
132 Cells / (11 x 6) (11 x 6) |
| Number of Bus bar |
12BB |

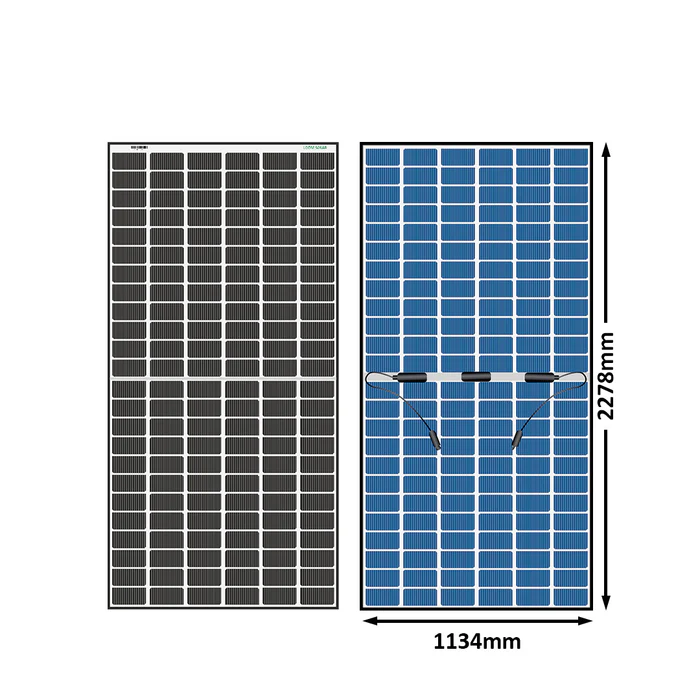

| Module Dimension |
(2278 x 1134 x 30) mm |
| Weight |
35 kg |
| Double Glass |
AR-coating toughened glass, 2+2 mm |
| Frame |
Anodized aluminium alloy |
| J-Box |
Split Junction Box (IP68),3 Bypass Diodes |
| Cable |
4.0 mm |
| Connector |
MC4 IP68 compatible |
| Maximum Test Load, Push/Pull |
5400 Pa / 2400 Pa |
Shipping Details
| Weight |
37 Kg |
| Dimensions L x W x H |
2384 x 1303 x 35 mm (7.82 x 4.27 ft.) |
