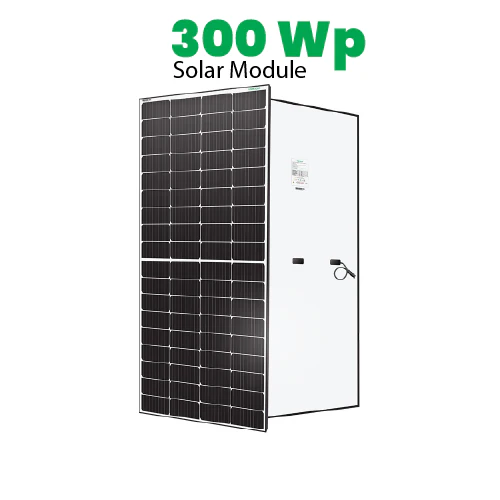

The Loom Solar 300 Wp solar panel is made from A-grade black silicon cells and generates electricity from sunlight. High-quality silicon is used in the cells, enabling them to achieve an efficiency of up to 22.39% and improving their performance in low-light conditions. This monocrystalline panel comes with a 25-year warranty and features 9 busbars, 72 cells, and 10 busbars. For outdoor use, we provide an IP68-rated junction with MC4 connectors and 1.4 meters of wire.
About Product
- Module efficiency of 22.39%.
- IP68 waterproof & dustproof junction box.
- Two MC4 connectors for connecting DC wires.
- Compact & durable.

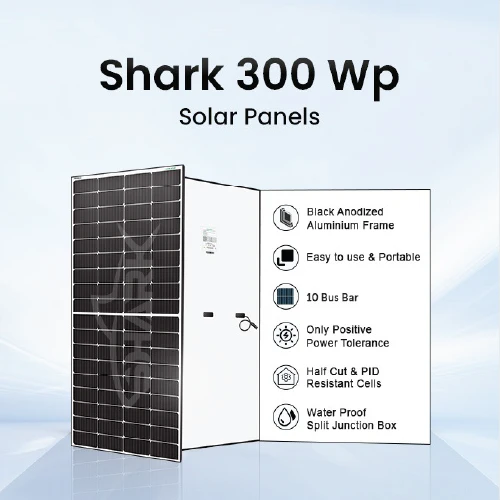

Features Summary
1. Half-Cut Solar Cell: This 300 Wp, 12 V Solar Panel is made of a half-cut solar cell, generating extra electricity in low-light conditions and occupying less roof space.
2. High Transmission Tempered Glass: With unbreakable tempered glass, it allows the maximum amount of sunlight to pass through and projects an image from a wide variety of objects, such as cricket balls and monkeys.
3. Black Anodized Aluminium Frame: PV modules are encapsulated in strong aluminium frames that protect them from high winds and feature multiple mounting holes for installation at various tilt angles (36°-15°).
4. IP68 Rated Junction Box: Solar cells are connected in series and parallel, and the final output goes into an IP68 Junction Box that connects DC wire for charging the inverter batteries.
Easy to Use & Portable
The installation of 300 Wp solar panels can be done by consumers or by local electricians who install house wiring and inverter batteries.
This solar panel is used by many shop owners to run DC applications during the day, and it is portable, so they can use it wherever they want.
Technical Specifications
| Brand |
Loom Solar |
| Nominal power |
300 Wp |
| Open-circuit voltage (Voc) |
25.96 |
| Short-circuit current (Isc) |
14.13 |
| Voltage at maximum power (Vmp) |
22.39 |
| Current at maximum power (Imp) |
13.41 |
| Power reduction per °C |
0.45% |
| Voltage reduction per °C |
0.33% |

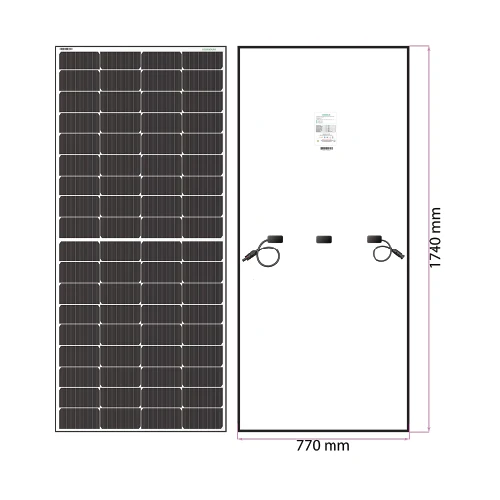

| Length |
1740 mm |
| Width |
770 mm |
| Weight |
16 kg |
| Efficiency |
22.39% |
| No. of solar cells |
72 |
| Panel Technology |
TOPCon N-Type Bifacial |
| Manufacturer Warranty |
15 years on, Manufacturing defects |
| Performance Warranty |
25 Years |
| Additional Features |
A+ Grade, anti-PID Mono cells |
| Cell Conversion efficiency > 20% |
| 1.4-meter wire for connection with MC4 connectors Inside |
